Mimetypes Management

ownCloud allows you to create aliases for mimetypes and map file extensions to a mimetype. These allow administrators the ability to change the existing icons that ownCloud uses to represent certain file types and folders, as well as to use custom icons for mimetypes and file extensions which ownCloud doesn’t natively support. This is handy in a variety of situations, such as when you might want a custom audio icon for audio mimetypes, instead of the default file icon.

Mimetype Aliases

ownCloud’s default mimetype configuration is defined in owncloud/resources/config/mimetypealiases.dist.json, which you can see a snippet of below. The mimetype’s on the left, and the icon used to represent that mimetype is on the right.

{
 "application/coreldraw": "image",
 "application/font-sfnt": "image",
 "application/font-woff": "image",
 "application/illustrator": "image",
 "application/epub+zip": "text",
 "application/javascript": "text/code",
}

Stepping through that file, you can see that:

  • the image icon is used to represent Corel Draw, SFNT and WOFF font files, and Adobe Illustrator files.
  • ePub files are represented by the text file icon.
  • JavaScript files are represented by the text/code icon.

Changing Existing Icons and Using Custom Icons

If you want to change one or more of the existing icons which ownCloud uses, or if you want to expand the available list, here’s how to do so.

First, create a copy of resources/config/mimetypealiases.dist.json, naming it mimetypealiases.json and storing it in config/. This is required for two reasons:

  1. It will take precedence over the default file.
  2. The original file will get replaced on each ownCloud upgrade.

Then, either override one or more existing definitions or add new, custom, aliases as required.

Note

Please refer to the ownCloud theming documentation for where to put the new image files.

Some common mimetypes that may be useful in creating aliases are:

Mimetype Description
image Generic image
image/vector Vector image
audio Generic audio file
x-office/document Word processed document
x-office/spreadsheet Spreadsheet
x-office/presentation Presentation
text Generic text document
text/code Source code

Once you have made changes to config/mimetypealiases.json, use the occ command to propagate the changes throughout your ownCloud installation. Here is an example for Ubuntu Linux:

$ sudo -u www-data php occ maintenance:mimetype:update-js

Example - Changing the JSON File Icon

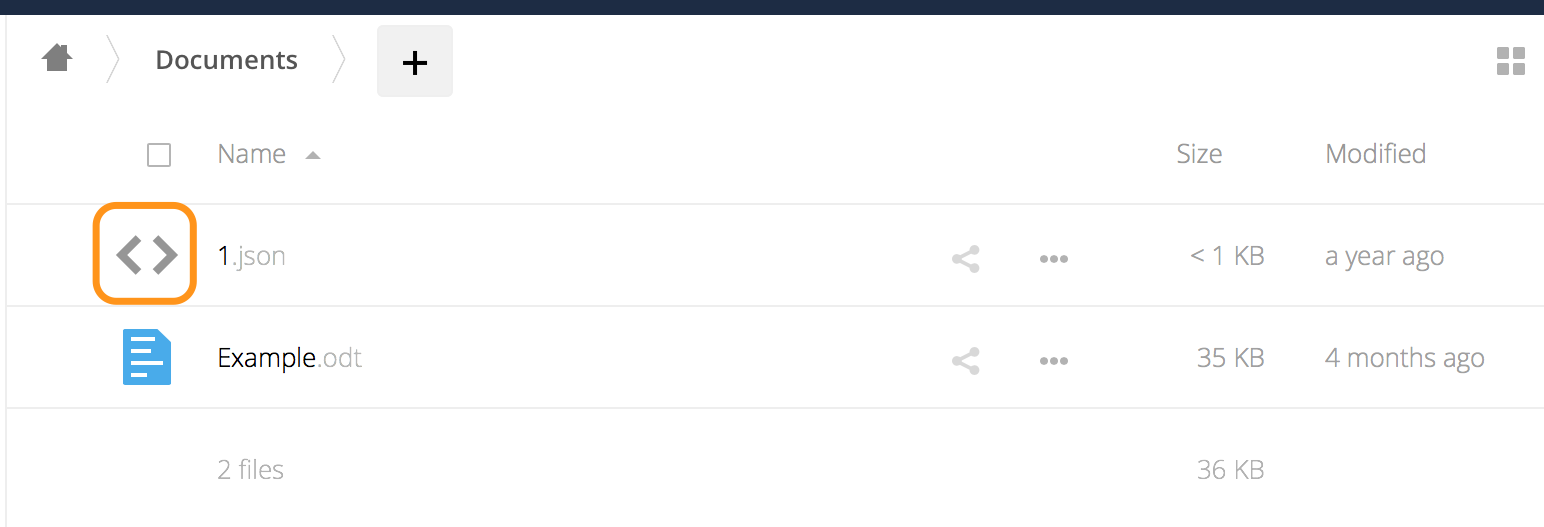

The default icon for JSON files

Let’s step through an example, from start to finish, of changing the icon that ownCloud uses to represent JSON files, which you can see above.

  1. From the root directory of your ownCloud installation, copy resources/config/mimetypealiases.dist.json to /config/mimetypealiases.json.
  2. Update the alias for application/json, which you should find on line 8, to match the following, and save the file:
"application/json": "text/json",
  1. Copy a new SVG icon to represent JSON files to core/img/filetypes, calling it text-json.svg.

Note

The name and location of the file are important. The location is because the core/img/filetypes directory stores the mimetype file icons. The name is important as it’s a rough mapping between the alias name and the icon’s file name, i.e., text/json becomes text-json.

  1. Run the following command to update the mimetype alias database.
$ sudo -u www-data php occ maintenance:mimetype:update-js

After doing so, whenever you view a folder that contains JSON files or upload one, your new icon file will be used to represent the file, as in the image below.

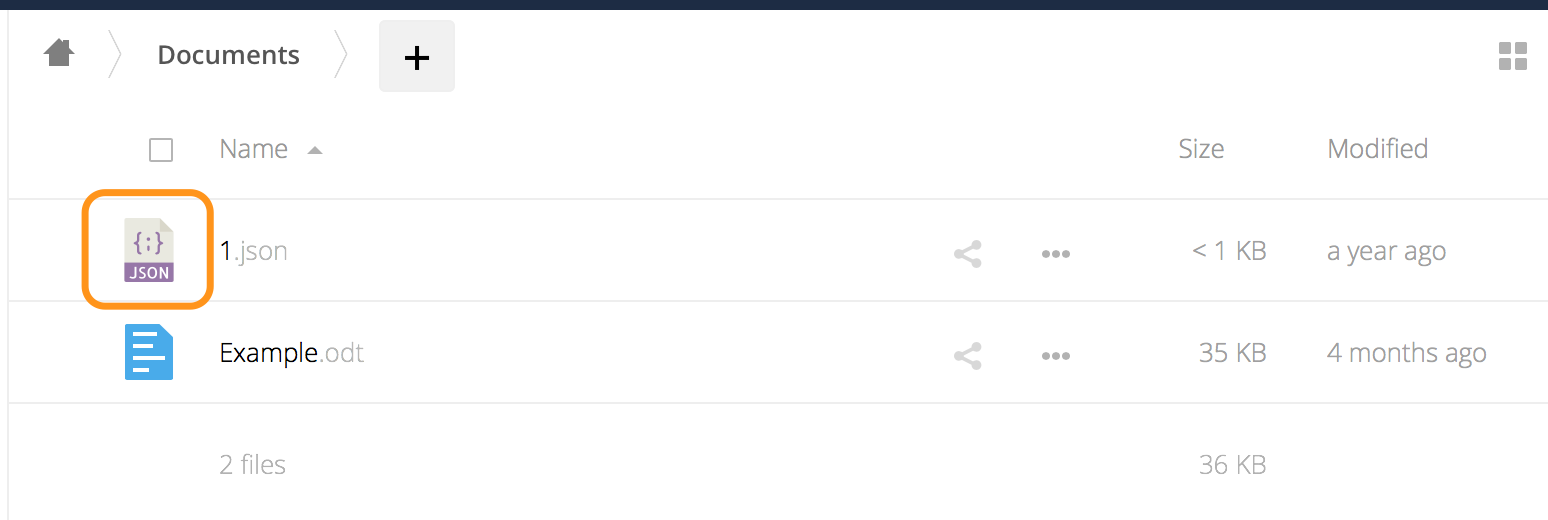

A replaced icon for JSON files

Mimetype Mapping

ownCloud allows administrators to map a file extension to a mimetype, e.g., such as mapping files ending in mp3 to audio/mpeg. Which then, in turn, allows ownCloud to show the audio icon.

The default file extension to mimetype mapping configuration is stored in resources/config/mimetypemapping.dist.json. This is similar to resources/config/mimetypealiases.dist.json, and also returns a basic JSON array.

{
 "3gp": ["video/3gpp"],
 "7z": ["application/x-7z-compressed"],
 "accdb": ["application/msaccess"],
 "ai": ["application/illustrator"],
 "apk": ["application/vnd.android.package-archive"],
 "arw": ["image/x-dcraw"],
 "avi": ["video/x-msvideo"],
 "bash": ["text/x-shellscript"],
 "json": ["application/json", "text/plain"],
}

In the example above, you can see nine mimetypes mapped to file extensions. Each of them, except the last (json), maps a file extension to a mimetype. Now take a look at the JSON example.

In this case, ownCloud will first check if a mimetype alias is defined for application/json, in mimetypealiases.json. If it is, it will use that icon. If not, then ownCloud will fall back to using the icon for text/plain.

If you want to update or extend the existing mapping, as with updating the mimetype aliases, create a copy of resources/config/mimetypemapping.dist.json and name it mimetypemapping.json and storing it in config/. Then, in this new file, make any changes required.

Note

Please refer to the ownCloud theming documentation for where to put the new image files.

Icon retrieval

When an icon is retrieved for a mimetype, if the full mimetype cannot be found, the search will fallback to looking for the part before the slash. Given a file with the mimetype image/my-custom-image, if no icon exists for the full mimetype, the icon for image will be used instead. This allows specialized mimetypes to fallback to generic icons when the relevant icons are unavailable.
